Product Description

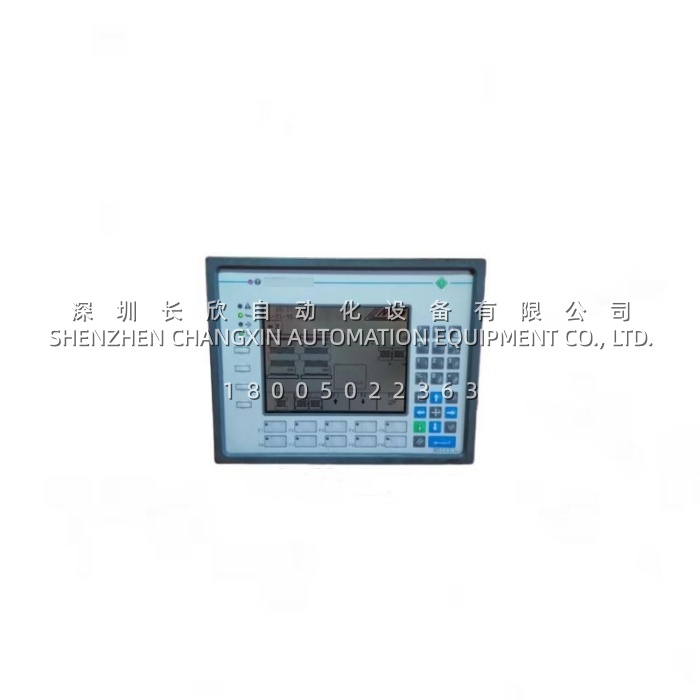

The UNIOP 33A-BKDC16-T is a versatile universal operator panel (HMI) from the renowned UNIOP family, designed to provide a reliable and flexible interface between operators and industrial control systems. This panel combines a compact 5.7-inch TFT color touchscreen with 16 programmable physical function keys, offering a balanced solution for applications where both visual clarity and tactile feedback are essential .



Application Scenarios

Imagine a food processing plant where operators must wear gloves and frequently interact with machinery in a wet, washdown environment. The UNIOP 33A-BKDC16-T is mounted on the equipment door, its IP65-rated front panel resisting water jets and dust . Operators use the physical keys—each labeled with a custom-printed tag—to start, stop, and reset the line, while the color touchscreen displays real-time production data, alarm messages, and recipe selection menus. This hybrid interface solves the core pain points of needing both rugged physical controls for critical functions and a flexible display for dynamic information, all without requiring a complex, expensive PC-based HMI.

In another scenario, a plant upgrading a legacy SLC 500 control system can deploy the 33A-BKDC16-T as a modern operator interface without rewriting the PLC’s core logic. The panel’s built-in driver for Allen-Bradley DF1 protocol enables direct connection to the PLC’s programming port . This cost-effective solution breathes new life into older machinery, enhancing operator efficiency and diagnostic capabilities while preserving the existing control infrastructure.



Parameters

Main Parameters	Value/Description
Product Model	33A-BKDC16-T
Manufacturer	UNIOP (EXOR / EAO)
Product Category	Universal Operator Panel (HMI)
Display Type	5.7-inch TFT Color LCD with Analog Resistive Touchscreen
Display Resolution	320 x 240 pixels (QVGA)
Function Keys	16 programmable tactile-membrane keys (8 with LED indicators)
Communication Ports	1× RS-232, 1× RS-485, 1× Ethernet (10/100 Mbps)
Supported Protocols	Modbus RTU/ASCII, Modbus TCP/IP, Allen-Bradley DF1, Siemens PPI, Mitsubishi FX, and 130+ more
Power Supply	24 V DC (20.4 to 28.8 V DC)
Front Panel Protection	IP65 (dust-tight, protected against water jets)
Operating Temperature	0 to 50 °C (32 to 122 °F)
Storage Temperature	-20 to 70 °C (-4 to 158 °F)
Dimensions (H×W×D)	approx. 202 × 158 × 48 mm (cutout: 192 × 138 mm)
Processor	32-bit RISC
