Application Scenarios
Picture a refinery fluid catalytic cracking (FCC) unit where dozens of control valves modulate feed rate, riser temperature, and product split—all driven by analog output signals from the DCS. A single failed AO channel can drift a valve off-setpoint, triggering a cascade of alarms and potentially forcing a unit shutdown. By deploying the 8C-TAOX51 in the Experion PKS Series 8 I/O rack, the plant gains sixteen independent, channel-to-backplane isolated 4-20 mA outputs in one compact IOTA slot. When a channel fault occurs, the 8C-TAOX51‘s integrated diagnostics instantly report open-circuit, short-circuit, or output deviation to the C300, and maintenance can hot-swap the module without powering down the rack—turning what used to be a multi-hour emergency response into a five-minute planned intervention.
Parameter

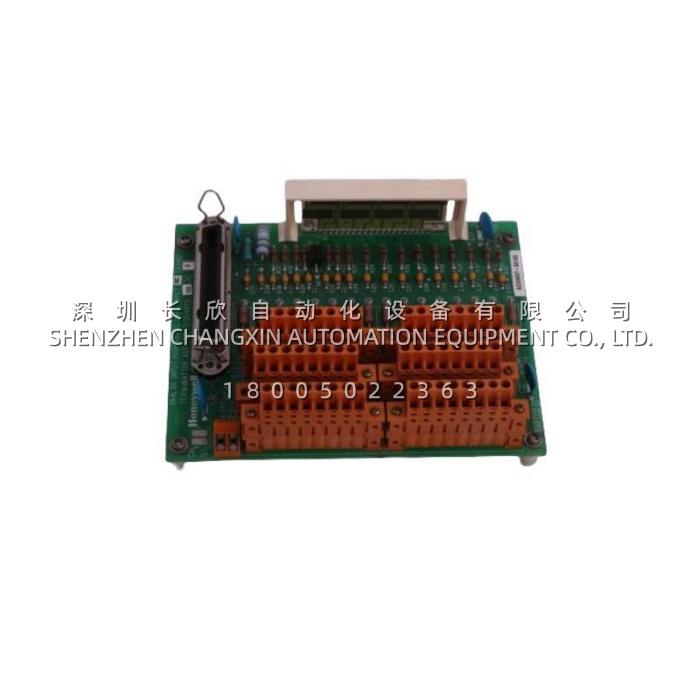

| Main Parameters | Value / Description |
|---|---|
| Product Model | 8C-TAOX51 (Part No. 51306983-175) |
| Manufacturer | Honeywell |
| Product Category | 16-Channel Analog Output IOTA Module |
| System Compatibility | Experion PKS Series 8, C300 Controller, PlantCruise |
| Output Channels | 16 channels (independent, configurable) |
| Output Signal Types | 4-20 mA, 0-20 mA, 0-10 VDC |
| Output Accuracy | ±0.1% to ±0.35% of full scale |
| Resolution | 12-bit D/A conversion |
| Output Ripple | <100 mV peak-to-peak @ 250Ω load |
| Temperature Drift | 0.005% FS / °C |
| Maximum Load Resistance | 750Ω (current output) |
| HART Support | Pass-through on every channel |
| Isolation | 1500 VDC (channel to backplane) |
| Redundancy | 1:1 hardware redundant capable |
| Hot-Swap | Yes – replace online without system shutdown |
| Power Supply | 24 VDC nominal (20-30 VDC range) |
| Power Consumption | ≤5 W typical |
| Fail-Safe Mode | Configurable: hold last value / low value / high value |
| Operating Temperature | -40°C to +70°C |
| Mounting | Series 8 IOTA baseplate, DIN rail |
| Certifications | CE, UL, CSA, SIL 2, Class I Div 2 / Zone 2 |
| Country of Origin | USA |
Specifications compiled from Honeywell Experion PKS Series 8 technical documentation and authorized distributor data.
Technical Principles and Innovative Values
- Innovation Point 1 – 16-channel high-density AO in a single IOTA. The 8C-TAOX51 packs sixteen independently configurable 4-20 mA / 0-10 VDC outputs into one compact termination assembly, maximizing cabinet space efficiency and reducing per-point wiring cost versus discrete AO blocks.
- Innovation Point 2 – Per-channel HART pass-through. Every output on the 8C-TAOX51 integrates native HART communication, enabling remote configuration and diagnostics of smart field devices (valve positioners, VFDs, transmitters) without external HART multiplexers—simplifying asset management and reducing lifecycle cost.
- Innovation Point 3 – 1500 VDC channel-to-backplane isolation. The 8C-TAOX51 galvanically isolates each analog output loop from the system backplane, blocking ground-potential differences and eliminating ground-loop-induced signal distortion—critical in large, distributed process plants.
- Innovation Point 4 – Configurable fail-safe behavior. Each channel on the 8C-TAOX51 can be independently programmed to hold last value, drive to a low (safe) value, or drive to a high value upon module or power failure, ensuring the connected final control element defaults to the safest possible state.
- Innovation Point 5 – 1:1 hardware redundancy + hot-swap. The 8C-TAOX51 supports seamless 1:1 redundant pairing for mission-critical loops, and the non-redundant variant can be hot-swapped online—maintenance replaces a suspect module in minutes with zero process interruption.
- Innovation Point 6 – Coated, hazardous-area-ready construction. With conformal coating and Class I Div 2 / ATEX Zone 2 certification, the 8C-TAOX51 withstands corrosive atmospheres, high humidity, and dust ingress, delivering SIL 2 functional safety integrity in the harshest process environments.
Application Cases and Industry Value
Case – Crude Distillation Unit AO ModernizationA Middle East refinery operating a Honeywell Experion PKS C300 system needed to expand its crude distillation column control, adding 48 new analog output loops for valve actuation, recirculation control, and furnace fuel modulation. The plant standardized on eighteen 8C-TAOX51 modules across three Series 8 I/O racks. The 16-channel density allowed the entire expansion to fit within the existing cabinet footprint, while HART pass-through enabled the maintenance team to remotely calibrate and diagnose all forty-eight valve positioners from the control room. Over the first 24 months of operation, the 8C-TAOX51 modules reported zero unplanned failures; the two instances of channel-level open-wire detection allowed proactive wiring repairs during scheduled shutdowns rather than emergency interventions. The plant estimated a 30% reduction in AO loop maintenance hours and a complete elimination of AO-driven process trips post-deployment.
