Application Scenarios:In a steel plant’s cooling water pump station, a critical 1500 kW motor was repeatedly tripping due to undetected bearing overheating, causing production delays. The existing basic relay could not monitor temperature. Replacing it with the GE 269Plus-D/O-278-100P-HI allowed the installation of Pt100 sensors directly into the motor bearings. The relay’s dual protection—using current-based thermal overload and direct RTD temperature monitoring—provided an early warning of lubrication failure. The HI specification ensured stable operation despite nearby variable frequency drives (VFDs) generating electrical noise, preventing nuisance trips and enabling predictive maintenance.
Parameter:
| Main Parameters | Value / Description |
|---|---|

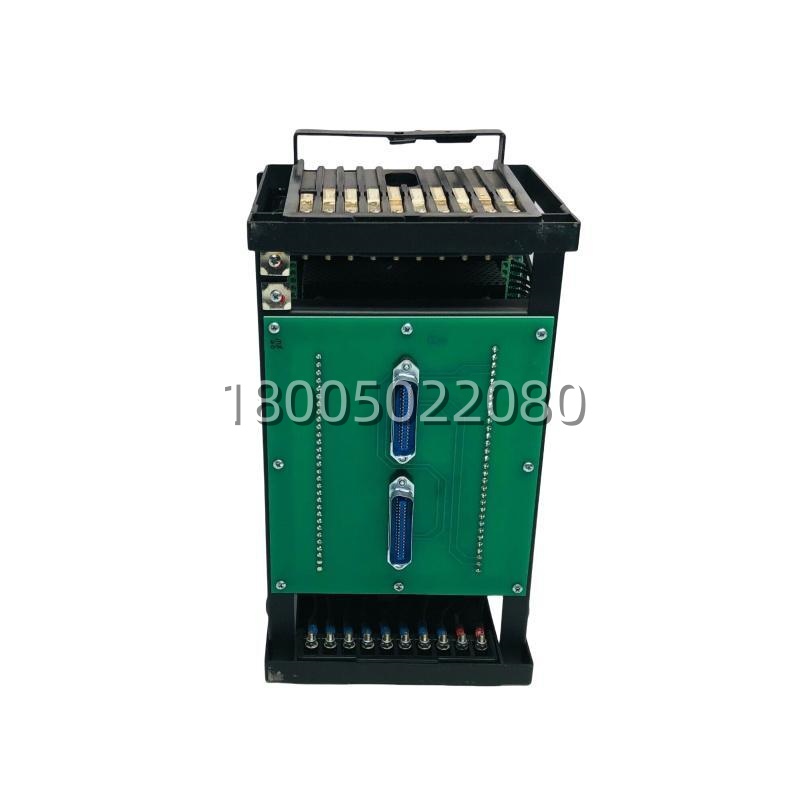

| Product Model | 269Plus-D/O-278-100P-HI |
| Manufacturer | GE Multilin (now part of GE Vernova) |
| Device Type | Microprocessor-based Motor Management Relay |
| Chassis Type | D/O (Drawout / Plug-in) for easy servicing |
| Control Power | 278 V AC ±10% (Dedicated winding/auxiliary supply) |
| RTD Input | 100P (Supports up to 12 channels of 100Ω Pt100 sensors) |
| Immunity Level | HI (High Immunity version for noisy environments) |
| Current Input | 3-phase + Ground (CT secondary typically 1A or 5A) |
| Contact Outputs | 4 Form C (SPDT) relays (Trip, Alarm, Aux1, Aux2) |
| Communication | RS-485 serial port supporting Modbus RTU protocol |
| Display | Enhanced backlit LCD for status and metering |
| Dimensions (W×H×D) | ~200 × 115 × 57 mm |
| Status | Discontinued (Available as new old stock or refurbished) |
Technical Principles and Innovative Values:
- Innovation Point 1: Dual Thermal Protection Model. Unlike traditional overload relays that only estimate temperature based on current, the 269Plus-D/O-278-100P-HI combines an I²t (current-squared-time) algorithm with direct RTD (Resistance Temperature Detector) feedback. This “two-source” thermal model accounts for both electrical overload and external heating (e.g., poor ventilation or high ambient temperature), providing a more accurate representation of the motor’s actual thermal state and preventing insulation failure.
- Innovation Point 2: High-Noise Immunity Design (HI). The HI suffix indicates a hardware design optimized for Electromagnetic Compatibility (EMC). It incorporates robust filtering and transient protection to withstand the harsh electrical noise commonly found in industrial settings with VFDs, soft starters, and high-voltage switching. This ensures reliable operation without false tripping caused by electromagnetic interference.
- Innovation Point 3: Hot-Swappable Drawout Design. The D/O (Drawout) chassis allows the relay to be unplugged and replaced without de-energizing the entire motor control center (MCC). This significantly reduces maintenance downtime during relay testing, calibration, or failure replacement, as the power circuit can remain live while the relay is serviced.
